Marine Field Support for Environmental Consultants
RSS Announces Sale of Vessel and Equipment Assets to Gravity Marine
Sediment Sampling
SEDIMENT SAMPLING
We offer boat-deployed solutions for surface sediment and core sampling, and specialized diver-operated tools for use in areas with limited access areas or in substrates where boat-based methods are undesireable.
Vibracore Sampling can be an efficient way to collect marine sediments to moderate depths of penetration. Our Rossfelder system utilizes stainless steel barrels and butyrate liners

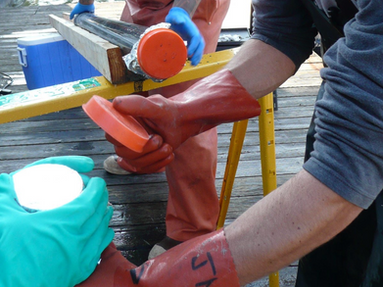

The core processing liners are clear, allowing visual evaluation of the core in the field. They are left intact and full-length for transport to the processing area.
Our 0.2 square-meter surface sediment grab is used to collect large-volume surface samples. A pneumatic ram closes the grab around challenging debris and substrate.
The Power Grab yields approximately 2.5 gallons from the top ten centimeters, with adjustable penetration up to 35 cm.
RSS divers assist the sediment team at AMEC Foster Wheeler with deployment of their proprietary coring tool, a pneumatic linear hammer that drives a square tube.

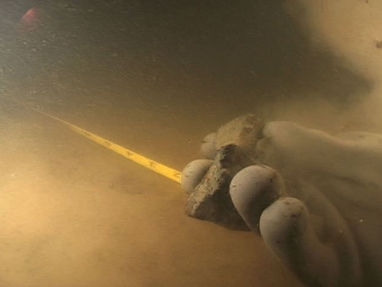

During the drive, RSS divers take several internal and external measurements, allowing the MudMole team to plot recovery over the entire core.

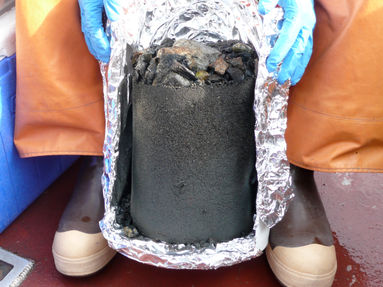

Our diver-operated hand cores collect a surface sample from the top 10 or 35 cm. The 10 cm sampler yields 3 liters of sediment.
The large diameter means there virtually no compaction. Stratification is preserved and fines are retained.
This sampler combines the liner and core nose from our 4-inch vibracore with a driving head powered manually by a slide hammer, and yields remarkable recovery.
Since the sediment is never liquefied, and because percent-recovery is so high, this sampling method is ideal for radioisotope analysis.
Vibracore Sampling can be an efficient way to collect marine sediments to moderate depths of penetration. Our Rossfelder system utilizes stainless steel barrels and butyrate liners
The core processing liners are clear, allowing visual evaluation of the core in the field. They are left intact and full-length for transport to the processing area.
Our 0.2 square-meter surface sediment grab is used to collect large-volume surface samples. A pneumatic ram closes the grab around challenging debris and substrate.
The Power Grab yields approximately 2.5 gallons from the top ten centimeters, with adjustable penetration up to 35 cm.
RSS divers assist the sediment team at AMEC Foster Wheeler with deployment of their proprietary coring tool, a pneumatic linear hammer that drives a square tube.
During the drive, RSS divers take several internal and external measurements, allowing the MudMole team to plot recovery over the entire core.
Our diver-operated hand cores collect a surface sample from the top 10 or 35 cm. The 10 cm sampler yields 3 liters of sediment.
The large diameter means there virtually no compaction. Stratification is preserved and fines are retained.
This sampler combines the liner and core nose from our 4-inch vibracore with a driving head powered manually by a slide hammer, and yields remarkable recovery.
Since the sediment is never liquefied, and because percent-recovery is so high, this sampling method is ideal for radioisotope analysis.
Vibracore Sampling can be an efficient way to collect marine sediments to moderate depths of penetration. Our Rossfelder system utilizes stainless steel barrels and butyrate liners
The core processing liners are clear, allowing visual evaluation of the core in the field. They are left intact and full-length for transport to the processing area.
Our 0.2 square-meter surface sediment grab is used to collect large-volume surface samples. A pneumatic ram closes the grab around challenging debris and substrate.
The Power Grab yields approximately 2.5 gallons from the top ten centimeters, with adjustable penetration up to 35 cm.
RSS divers assist the sediment team at AMEC Foster Wheeler with deployment of their proprietary coring tool, a pneumatic linear hammer that drives a square tube.
During the drive, RSS divers take several internal and external measurements, allowing the MudMole team to plot recovery over the entire core.
Our diver-operated hand cores collect a surface sample from the top 10 or 35 cm. The 10 cm sampler yields 3 liters of sediment.
The large diameter means there virtually no compaction. Stratification is preserved and fines are retained.
This sampler combines the liner and core nose from our 4-inch vibracore with a driving head powered manually by a slide hammer, and yields remarkable recovery.
Since the sediment is never liquefied, and because percent-recovery is so high, this sampling method is ideal for radioisotope analysis.
Research Diving
RESEARCH DIVING
Eelgrass/macroalgae and geoduck surveys per WDFW protocols.
Divers are line-tended and in voice communication with the surface and each other at all times.
Specialized surface samplers for top 10-30cm, piston coring to 8ft, and creative ingenuity to address site-specific sampling needs.
Our diver dress and decontamination procedures protect us from potential contaminants.
Return to unmarked installations for monitoring, tissue sampling, or retrieval.
The boat and the crew are two thirds of the dive team.
Innovative harvesting, planting and monitoring techniques with proven results.
Video surveys can include diver narration and a live surface feed, and deliverables vary by project needs.
RSS divers assist the sediment team at AMEC Foster Wheeler with deployment of their proprietary coring tool.
Baseline observations and post-project substrate/habitat surveys related to cleanup and mitigation projects.

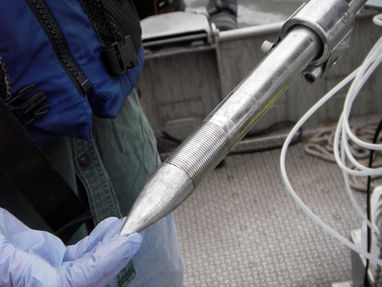

In-situ pore water collection, installation, and retrieval of piezometers, peepers, SPMEs, fiber optics, etc.
Video surveys and reporting for NPDES permit compliance.
COllect fish, shellfish, and other organisms for tissue analysis or biomass studies.
Wood Debris Evaluation: Percent cover, thickness, sampling.
The RSS dive team has the experience, equipment and attention to detail that are vitally important for safety and the quality of your work product.
Instruments
INSTRUMENT DEPLOYMENT
& SURVEYS
We have in-house survey and sampling capabilities and also help clients and other subcontractors deploy and retrieve their own instrumentation.
We provide underwater installation of YSI data sondes, porewater samplers/peepers, SPME fibers, fiber optic arrays
The SeaAll is a towed video system that integrates time, position and attribute data to efficiently map resources over large areas

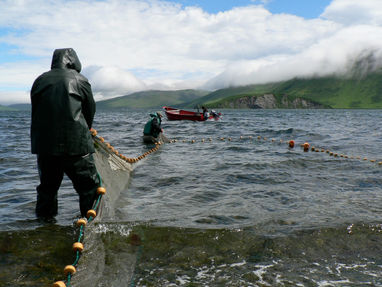

Beach seine deployment, shoreline habitat characterization
Surf smelt/forage fish surveys
Sediment Profile Imaging (SPI) deployment, bathymetric survey support
Towed instrumentation to include bottom trawls, otter trawls, and sidescan sonar support
Water quality monitoring via CTD and YSI casting, Van Dorn/Niskin sampling
Current meters, current profilers, sound velocity profilers, etc. Acoustic release, ground line or diver recovery
